Crane beam with Steel structure warehouse
1.Engineering cases:
2.Crane beam with Steel structure warehouse
Prefabricated steel Structure workshop is an pre-engineered steel structure which is widely used for the large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and other buildings.Shengbang's steel structure warehouse features of high fire resistance, strong corrosion resistance. Industry steel structure warehouse usually made of steel beams, steel columns, steel trusses and other components of the composition; each component using welds, bolts or rivets to connect. The usage scale includes large-scale workshop, or used for the warehouse, supermarkets, entertainment centers and modular steel structure garage.
3.Technical parameters
| Lifting capacity(t) | t | 5 | 10 |
| Span(m) | s | 10.5-31.5 | 10.5-31.5 |
| Lifting height(m) | 16 | 16 | |
| Trolley moving speed(m/min) | 37.2 | 43.8 | |
| Trolley lifting speed(m/min) | A5 | 12.5 | 8.5 |
| Crane running speed(m/min) | A6 | 15.5 | 13.3 |
| A5 | 89.8 92.3 89.8 91.9 84.7 | ||
| A6 | 116.2 117.4 115.6 116.8 112.5 | ||
| Power source | A.C380V 50HZ 3-Phase | ||
4.Design capacit
Shengbang Steel Structure Co., Ltd. has professional designers who are able to R&D and various houses. Most of them have three years of working experience on steel structure design industry line. Our company adopts many advanced domestic and foreign design software to draw blueprint design, perspective view, construction drawing and detail drawing to meet requirements from different customers. At present, we have designed and produced plenty of foreign steel structure projects successfully and won high praise from overseas customers.
5.Guidance installation
Shengbang Steel Structure Company can supply the guidance installation service.Usually steel structure building is a large installation engineering. If customers may need the professional technical engineer to supervise the installation on site overseas, the customer must to inform before 1 months from leave the China . But customer should coordinate with us for following aspects:
Customer should provide:
1.)Translator or assistant on site.
2.)All costs raised including:
A. visa fee
B. Round trip flight ticket
C. Accident insurance for the supervisor during the period
D. Accommodation
E. Daily meals
F. Internet
G. Local traffic fee (if any)
3) The customer should pay the engineer with supervision fee, which can be negotiated and decided by both.
4)Customer has the responsibility to provide necessary security system to protect the supervisor, especially in some unrest countries.

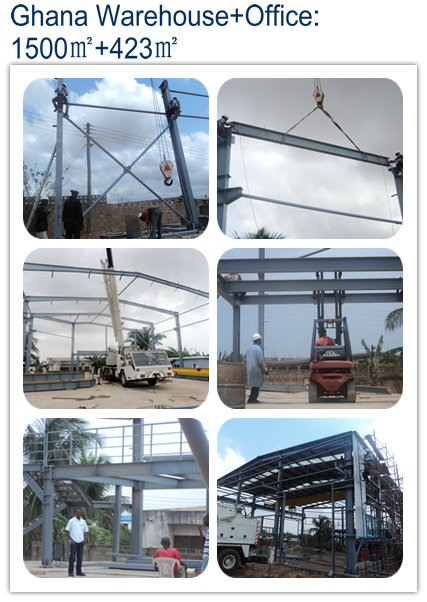

There have some guidance installation picture:
Contact way
1)FOSHAN SHENGBANG STEEL STRUCTURE CO., LTD
2)Add:Pingtang Industrial Park, Shipeng Village, Shishan Town, Nanhai District,
3)Foshan, Guangdong Province, China
4)Tel:0086-757-63323396/0086-757-18900873268 Fax:0086-757-81196682
