Outlook Stable steel floor



Outlook Stable steel floor

1.SBS STEEL STRUCTURE ANIMAL HUSBANDRY
Steel structure building is a new type of prefabricated steel structure barn. The main steel frame is formed by linking up H-section, Z-section and U-section steel components while roof and wall using a variety of panels. It meets the requirement for the sheep pan perfectly in terms of the strength. The load bearing parts are mainly steel structures, including steel columns, steel beams, steel structural basements, bracing systems for wall and roof. The Main Structure is usually made of Q345 Steel while the purlins and bracing system are made of Q235 Steel. They are the most common steel materials used for china steel structure workshop in China.

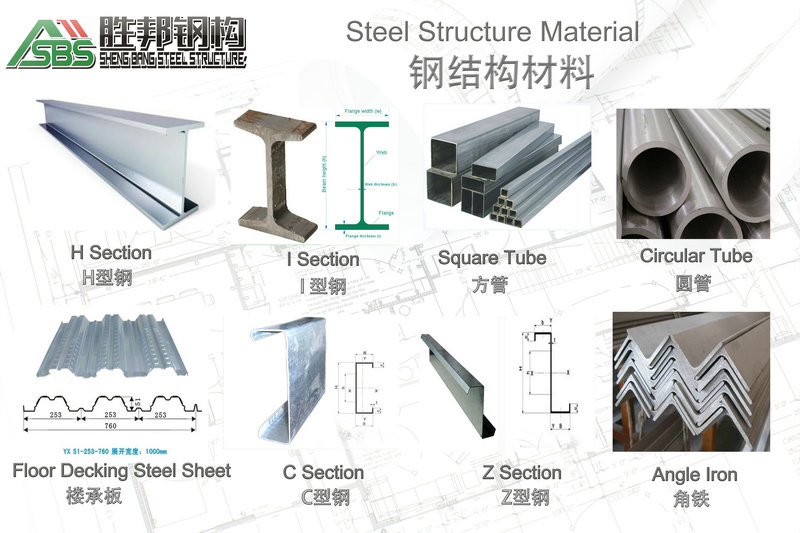

2.The detail material for the steel structure：

The steel structure material is included the H section,I section,Square tube,Circular Tube,Floor decking steel sheet,C section,Z section,Angle iron , Steelbar ,Steel plate .

H section steel
H type steel is an economic efficient section material with optimized cross section area allocation and more reasonable ratio of strength to weight. It is named because of its letter "H" cross section. Since its different parts are of orthogonal configuration, h-beam has advantage of good bending capacity, simple construction, cost saving and structure light weight etc., has been widely used.

H-beam is divided into:
The flange wide type (HW)
The flange middle type (HM)
The narrow flange type (HN)
Thin-wall h-beam type (HT)
H section steel pile type (HU)

C type steel
C steel was processed after hot rolling and cold bending. Its characteristics are: thin wall, light weight, good cross section performance, high strength (compared with the traditional steel) and can save 30% materials compared with the equivalent steel.

C type steel is widely used in purlin and wall beam steel structure building, also can combined into lightweight roof, carrier construction, etc. In addition, it can also be used for machinery and column, beam and arm light industrial manufacturing.



3.Product detials

1.Opinions	1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
	2)We can also make and develop new parts according to customers' drawings and detailed dimensions.
2. Specifications	1) Size: MOQ is 200m2, width X length X eave height, roof slope
	2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors
	3) Base: Cement and steel foundation bolts
	4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section
	5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
	6) C or z purlin: Size from C120~C320, Z100~Z200
	7) Roof and wall panel: Single colorful corrugated steel sheet 0.326~0.8 mm thick, (1150 mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50 mm ~ 100 mm.
	8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, etc
	9) Surface: Two lays of Anti-rust Painting
	10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ
3. Design Parameters	If you need we design for you, pls supply us the following parameter together with detail size
	1) Live load on roof (KN/M2)
	2) Wind speed(KM/H)
	3) Snow load (KG/M2)
	4) Earthquake load if have
	5) Demands for doors and windows
	6) Crane (if have) , Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!





















































4.Design

  Shengbang Steel Structure Co., Ltd. has professional designers who are able to R&D and various houses. Most of them have three years of working experience on steel structure design industry line. Our company adopts many advanced domestic and foreign design software to draw blueprint design, perspective view, construction drawing and detail drawing to meet requirements from different customers. At present, we have designed and produced plenty of foreign steel structure projects successfully and won high praise from overseas customers.

5.steel structure design common specifications are as follows:

1) "technical specification for cold formed steel structures" (GB50018-2002)
2) "just construction quality acceptance" (GB50205-2001)
3) "for the welding of steel structure technical specification" (JGJ81-2002-2002 J218)
4) "technical specification for steel structure of high rise civil building" (JGJ99-98)



6.commonly used in steel and steel properties:

1) carbon structural steel: Q235B, Q345B, etc..
2) high strength low alloy structural steel;
3) high quality carbon structural steel;
4) Special steel of alloy structural steel;
5) special purpose just;
6) walls and roofing materials are optional: corrugated steel plate, EPS sandwich plate, rockwool sandwich plate and polyurethane sandwich plate.





7.Service flow path

Discussing Project——Design Plan Drawing——Budget & Quote——Confirm Drawing&Quotation——Sign the Contract——Make the shop Drawing——Manufacturing——Transportation——Shipping——Foundation Ready——Guidance Installation——Finshed Installation



Contact way

1)FOSHAN SHENGBANG STEEL STRUCTURE CO., LTD
2)Add:Pingtang Industrial Park, Shipeng Village, Shishan Town, Nanhai District,
3)Foshan, Guangdong Province, China
4)Tel:0086-757-63323396/0086-757-18900873268 Fax:0086-757-81196682
